Robj Utility - Collected Slides

Slide 1

1 Title

Robj Utility - Title

R.K.Owen,Ph.D. Sterling Software/NASA Ames Research Center

rk@owen.sj.ca.us

TITLE

Monitoring Object Library Usage and Changes

Slide 2

1.1 Abstract

Robj Utility - Abstract

TITLE

Monitoring Object Library Usage and Changes

ABSTRACT

The NASA Ames Numerical Aerodynamic Simulation program / Aeronautics Consolidated Supercomputing Facility (NAS/ACSF) supercomputing center services over 1600 users, and has numerous analysts with root access. Several tools have been developed to monitor object library usage and changes. Some of the tools do "non-invasive" monitoring and other tools implement run-time logging even for object-only libraries. The run-time logging identifies who, when, and what is being used. The benefits are that real usage can be measured, unused libraries can be discontinued, training and optimization efforts can be focused at those numerical methods that are actually used. An overview of the tools will be given and the results will be discussed.

Slide 3

1.2 Days of Whine & Neuroses

Robj Utility - Days of Whine & Neuroses

2 C90s
1600 users
50 analysts with root access
Numerous Mathematical Libraries
- IMSL
- NAG
- CRAYFISHPAK
- BCSLIB / BCSEXT
- LIBSCI / libm
- SLATEC
- LAPACK
Numerous Other Libraries

Slide 4

1.3 Inodes & File Systems

Robj Utility - Inodes & File Systems

Slide 5

2 Non-Invasive Tools

Robj Utility - Non-invasive Monitoring Tools

libmon - monitor library changes
libuse - monitor (static) library accesses
libq - parse log files
libdate - libq compatible time stamp

Slide 6

2.1 libmon

Robj Utility - Monitoring - libmon

Monitor changes to libraries in several directories
Invoked from cron once / hour
Compare mtimes
Example: libm.log


Mon_Mar_06_1995_07:00 Wed_Feb_08_1995_09:39 LOG_CREATED
Tue_Aug_22_1995_17:00 Tue_Aug_22_1995_16:04 LIB_MODIFIED

Slide 7

2.2 libuse

Robj Utility - Usage Tracking - libuse

Track usage of libraries in several, but fewer directories
Invoked from cron every 10 minutes
Check atimes
Example: libnag.log


Mon_Mar_06_1995_17:00 LOG_CREATED
Tue_Mar_21_1995_16:30
Tue_Mar_21_1995_16:40
. . .
Fri_May_26_1995_16:00
Mon_Jun_05_1995_11:30 LIB_MODIFIED
Tue_Jun_06_1995_09:40
Tue_Jun_06_1995_13:10
. . .

Slide 8

2.3 libq

Robj Utility - Log Files Galore - libq

libmon -
- ~100 files
- ~2 lines / file
libuse -
- ~50 files
- ~300 lines / file - range 10 - 5000 lines
grep-like tool
Select lines according to date & time range

Slide 9

2.4 libdate

Robj Utility - Front-End Scripts - libdate

Same peculiar date & time format
Helps create log files for scripts
Compatible with libq
setuid program for safe logging
Example Script: slatec.doc


#!/bin/csh -f
# front-end for slatec.doc - log time and user name
if ( -e /usr/local/bin/libdate ) then
  libdate -f /usr/spool/logs/slatec.log `logname`
endif
/usr/local/bin/Slatec.Doc
exit

Slide 10

3 Daily Usage

Robj Utility - Daily Usage

Slide 11

3.1 Monthly Usage

Robj Utility - Monthly Usage

Slide 12

4 Run-Time Logging

Robj Utility - Run-Time Logging

Log actual usage
- User
- Library
- Routine
- Number of calls
- Total CPU time
Information at execution time, not load time

Slide 13

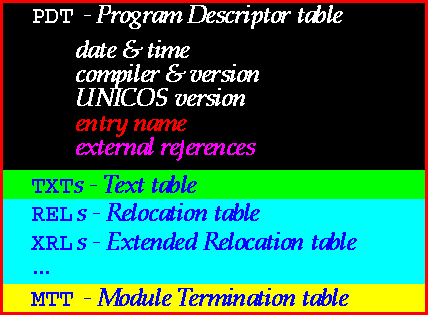

4.1 Cray Relocatable Object

Robj Utility - Cray Relocatable Object

Slide 14

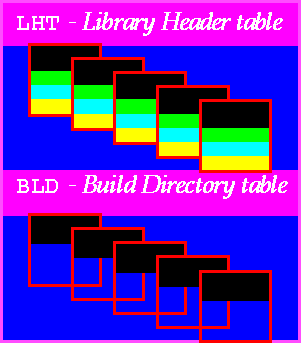

4.2 Cray BLD library

Robj Utility - Cray BLD Library

Slide 15

5 Object Modification

Robj Utility - Object Modification - robj

Easier to modify objects or libraries

Parse relocatable objects & bld libraries

Modify selected entry names

MYSUBR -> MySuBr

Modify selected external references

Output front-end assembly code

Verify or reformat entry lists

Easier to modify objects or libraries

Slide 16

5.1 Modifying Libraries

Robj Utility - Modifying Cray Libraries

Slide 17

5.2 Front-End Code

Robj Utility - Front-End Code

User visible entry name
Call "diddled" library routine (same stack)
Save return value
Call logging routine
- Pass routine name
Restore saved return value
Return to user program

Slide 18

5.3 Logging

Robj Utility - Logging

Log to file or to daemon
Fail gracefully - if so inclined
Date & time, routine name, username
Example: libimsl20.log


Wed_May_17_1995_08:49 L2TCG     filei
Wed_May_17_1995_08:49 LFSCG     filei
Fri_Jun_02_1995_16:54 QDAGS     mrgoers
Wed_Jun_07_1995_17:26 QDAGS     mrgoers
Wed_Jun_14_1995_15:57 LSGRR     ilu
Thu_Jun_15_1995_08:40 LSGRR     ilu
Thu_Jun_15_1995_08:47 LSGRR     ilu

Slide 19

6 On-Line Documentation - alldoc

Robj Utility - On-Line Documentation - alldoc

Keyword search
Refine further searches
Documents come from source comment fields
- f77head - selects comments from poorly structured sources
Can execute other commandline document facilities
Outputs brief description or full document

Slide 20

7 Conclusion

Robj Utility - Conclusion

Several UNIX tools -
- Monitor libraries
- Track usage of libraries
- Modify libraries
- On-line documentation
Run-time usage of library routines
In use for 3 years
Further improvements

Last Modified:

Brought to you by: R.K. Owen, Ph.D.
